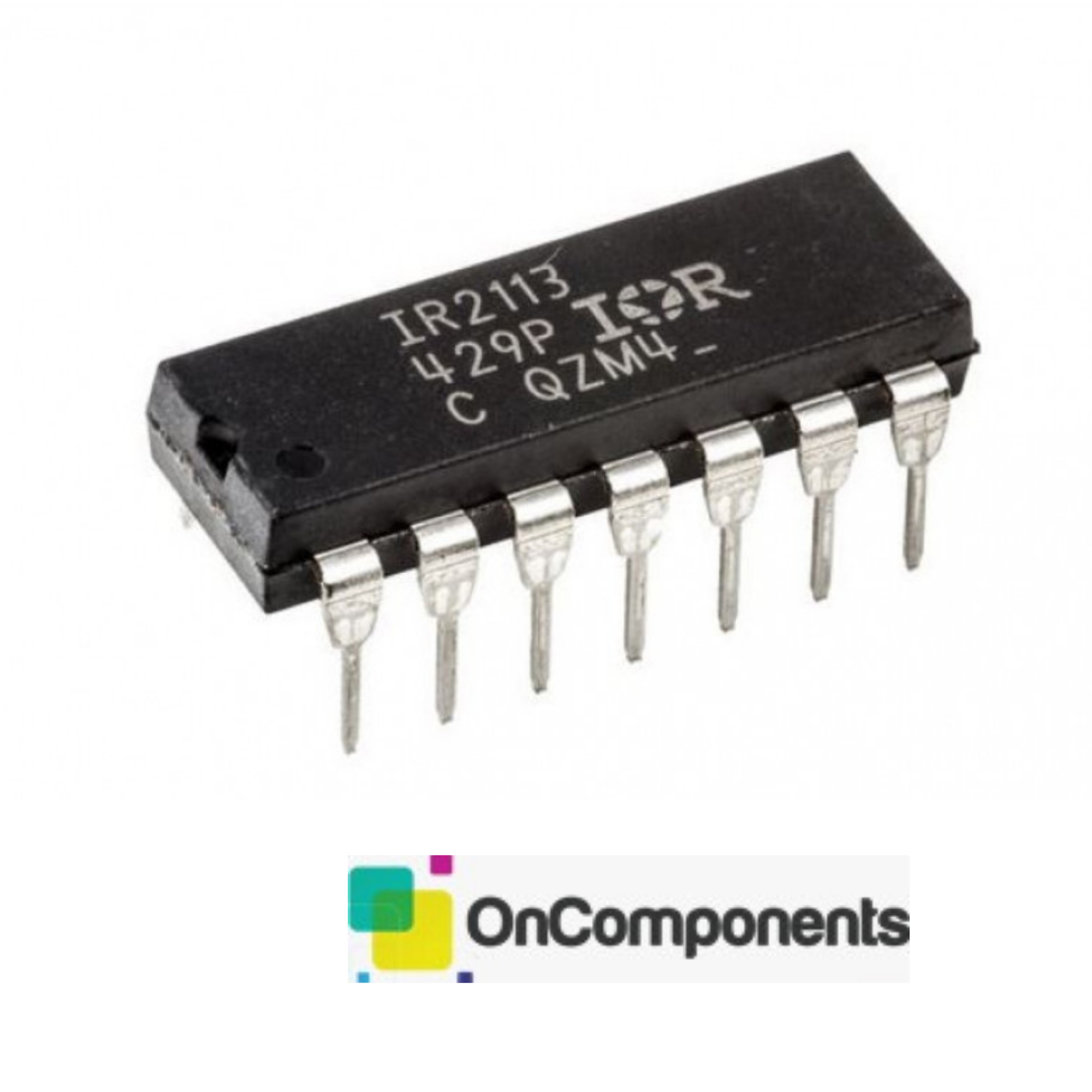

The IR2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 500 or 600 volts.
35.00 AED – 60.00 AED
|VB-High side floating supply voltage||-0.3||625||V|
|VS- High side floating supply offset voltage||VB -25||VB +0.3||V|
|VHO- High side floating output voltage||VS -0.3||VB +0.3||V|
|VCC- Low side and logic fixed supply voltage||-0.3||25||V|
|VLO- Low side output voltage||-0.3||VCC+0.3||V|
|VDD- Logic Supply Voltage||-0.3||VSS+25|
SKU: N/A Category: INTEGRATED CIRCUTS (IC)
