|Data Rate||120 kb/s|
|Number of Drivers||2 Driver|
|Number of Receivers||2 Receiver|
|Supply Maximum Voltage||5.5 V|
|Supply Minimum Voltage||4.5 V|
|Operating Supply Current||10 mA|
|Operating Temperature||– 40 Degree C~+80 Degree C|
|Unit Weight||141.700 mg|
18.00 AED – 30.00 AED

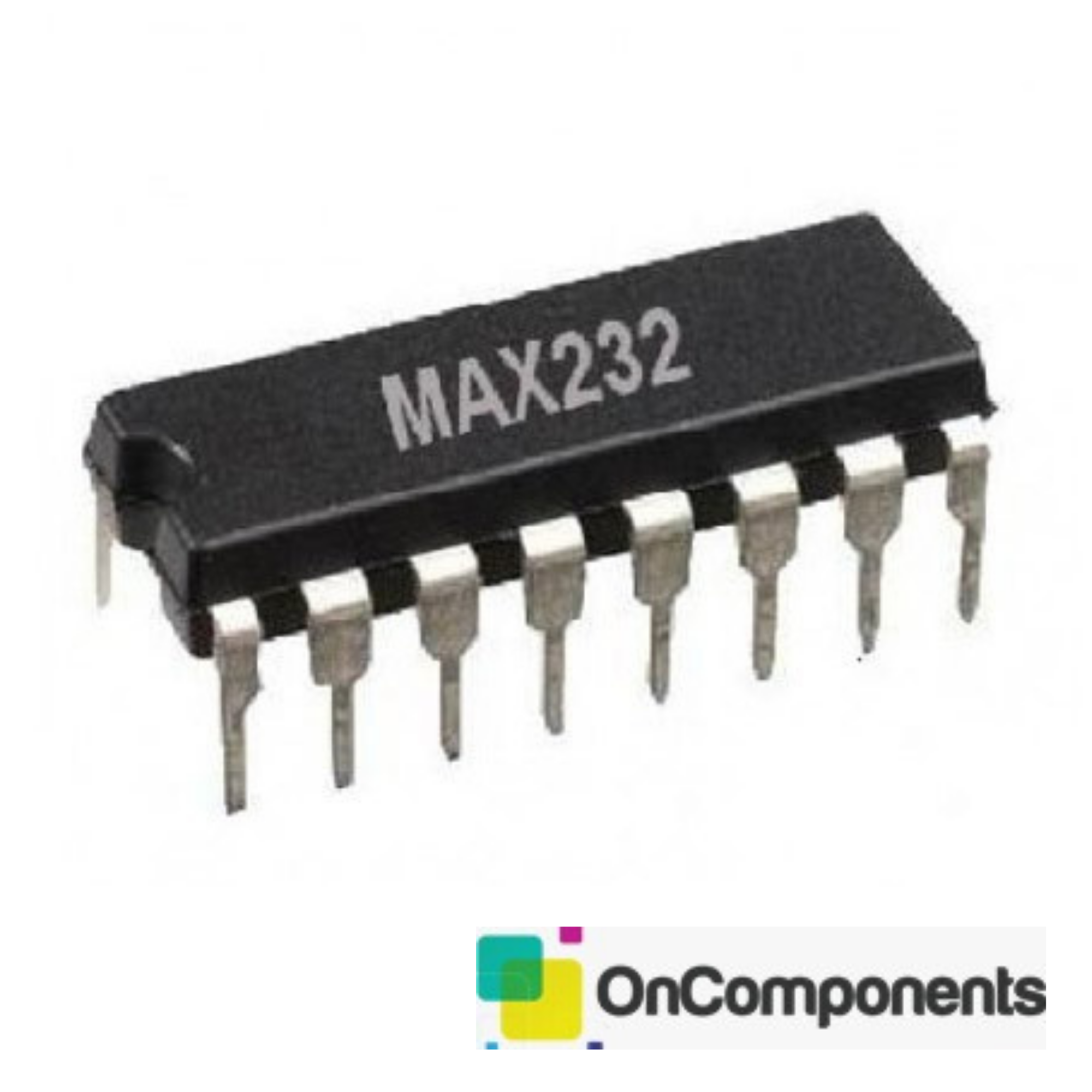

As per the needs and requirements of our clients, we are involved in providing?MAX232 Dual Driver Receiver.
pack of 3, pack of 5
36.00 AED – 120.00 AED
The SN65175 and SN75175 are monolithic quadruple differential line receivers with 3-state outputs. They are designed to meet the requirements of ANSI Standards EIA/TIA-422-B, RS-423-B, and RS-485, and several ITU recommendations. These standards are for balanced multipoint bus transmission at rates up to 10megabits per second. Each of the two pairs of receivers has a common active-high enable. The receivers feature high input impedance, input hysteresis for increased noise immunity, and input sensitivity of ?200 mV over a common-mode input voltage range of ?12 V. The SN65175 and SN75175 are designed for optimum performance when used with the SN75172 or SN75174 quadruple differential line drivers. The SN65175 is characterized for operation from -40?C to 85?C. The SN75175 is characterized for operation from 0?C to 70?C.
