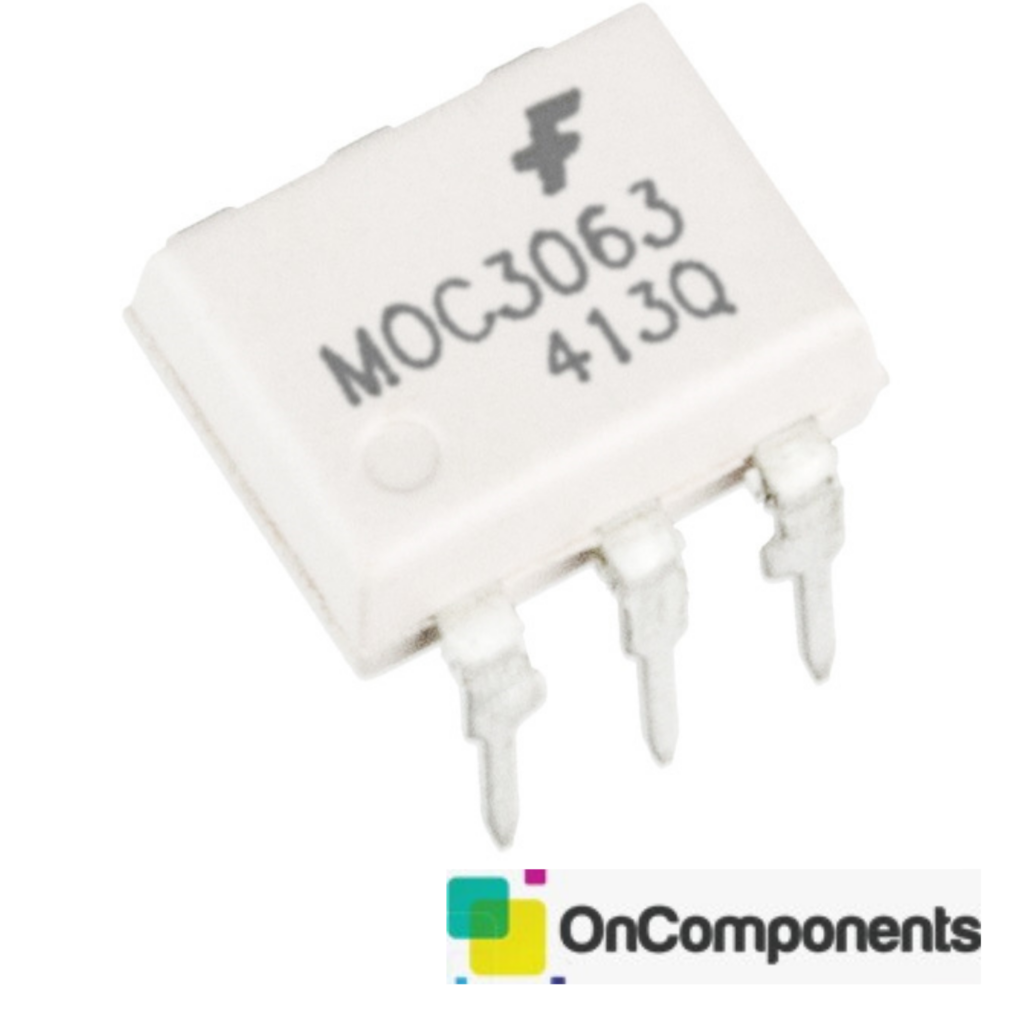

- Breadboard friendly PDIP package with pin spacing of 2.54mm (0.1″)
- Dimensions (excluding pins): 8.66mm (0.34″) length x 6.55mm (0.26″) width x 3.38mm (0.13″) height
- Pin Length: 3.8mm (0.15″)
- Weight: 0.41g (0.015oz)
| Max Isolation Surge Voltage | 7500 VAC |
| EMITTER | |
| Max Continuous Forward Current | 60mA |
| Max Reverse Voltage | 6V |
| LED Trigger Current | 5mA |
| DETECTOR | |
| Max Peak Repetitive Surge Current | 1A |
| Peak Blocking Current, Either Direction | 10-500nA |
| ZERO CROSSING CHARACTERISTICS | |
| Inhibit Voltage (V above which device will not trigger) | 12-20V |
| Leakage in Inhibit State | 2mA |
