Weight (lbs) | (0.01) |
Manufacturer | Sharp |

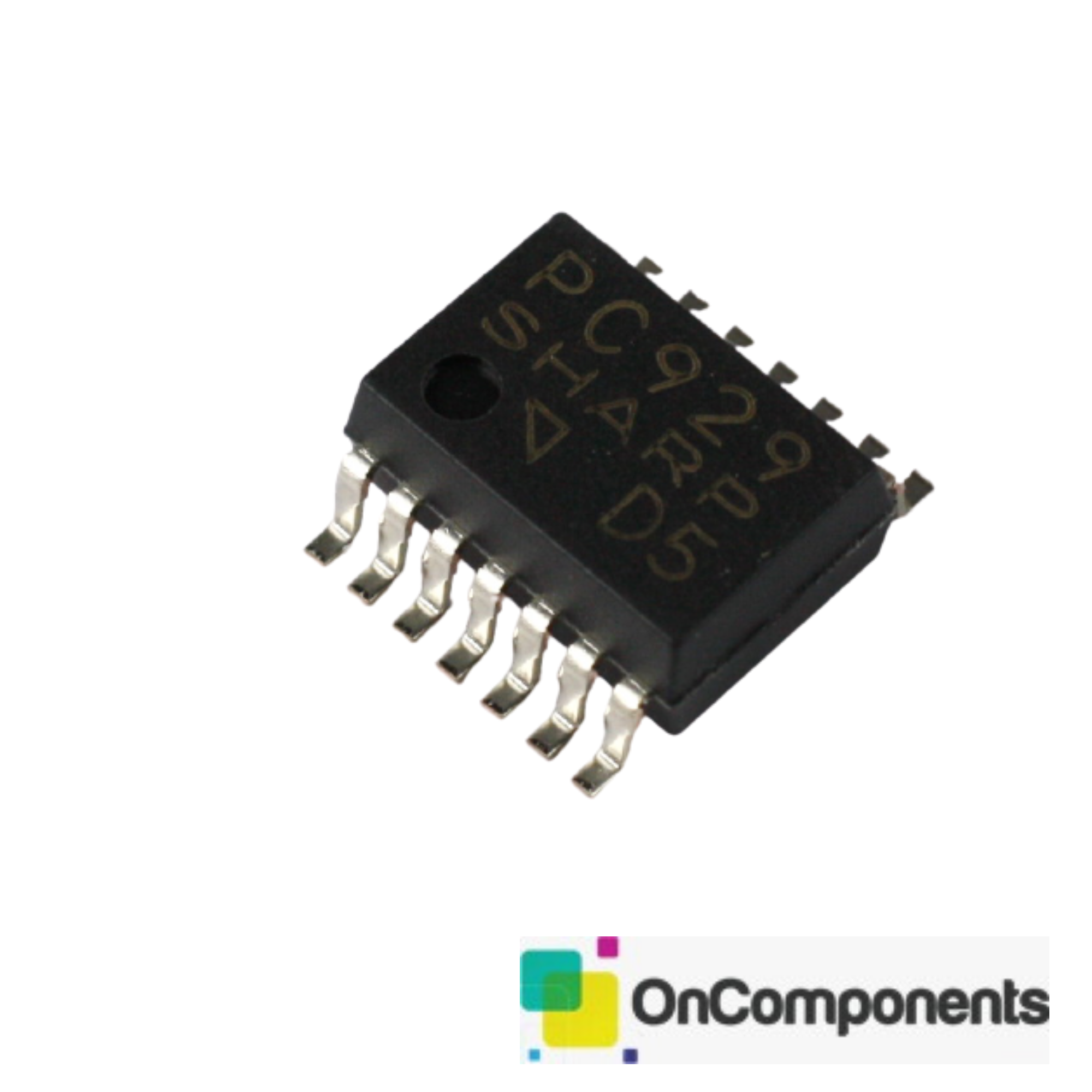

Case Style | 14-Pin Surface Mount |
Manufacturer Part # | PC929 |
Forward Current: | 20 MA | Reverse Voltage: | 6 V |
---|---|---|---|
Supply Voltage: | 35 V | Total Power Dissipation: | 550 MW |
Isolation Voltage: | 4 000 Vrms | Operating Temperature: | – 25 To + 80 ?C |
Features
1. Built-in IGBT shortcircuit protector circuit
2. Built-in direct drive circuit for IGBT drive (Peak output current … IO1P, IO2P?: MAX. 0.4A)
3. High speed response (tPLH, tPHL?: MAX. 0.5 ? s)
4. High isolation voltage (Viso?: 4000Vrms)
5. Half lead pin pitch (p=1.27 mm) package type
6. Recognized by UL, file NO. E64380
Application
1. IGBT control for inverter drive
Absolute Maximum Ratings?(Ta=Topr unless otherwise specified)
Parameter | Symbol | Rating | Unit | |
---|---|---|---|---|
Input | *1?Forward current | IF | 20 | mA |
Reverse voltage | VR | 6 (Ta= 25?C) | V | |
Output | Supply voltage | VCC | 35 | V |
O1?output current | IO1 | 0.1 | A | |
*4?O1?peak output current | IO1P | 0.4 | A | |
O2?output current | IO2 | 0.1 | A | |
*4?O2?peak output current | IO2P | 0.4 | A | |
O1?output voltage | VO1 | 35 | V | |
*2?Power dissipation | PO | 500 | mW | |
Overcurrent detecting voltage | VC | VCC | V | |
Overcurrent detecting current | IC | 30 | mA | |
Error signal output voltage | VFS | VCC | V | |
Error signal output current | IFS | 20 | mA | |
*3?Total power dissipation | Ptot | 550 | mW | |
*5?Isolation voltage | Viso | 4000 | Vrms | |
Operating temperature | Topr | – 25 to + 80 | ?C | |
Storage temperature | Tstg | – 55 to + 125 | ?C | |
Soldering temperature | Tsol | 260 (for 10 sec) | ?C |
